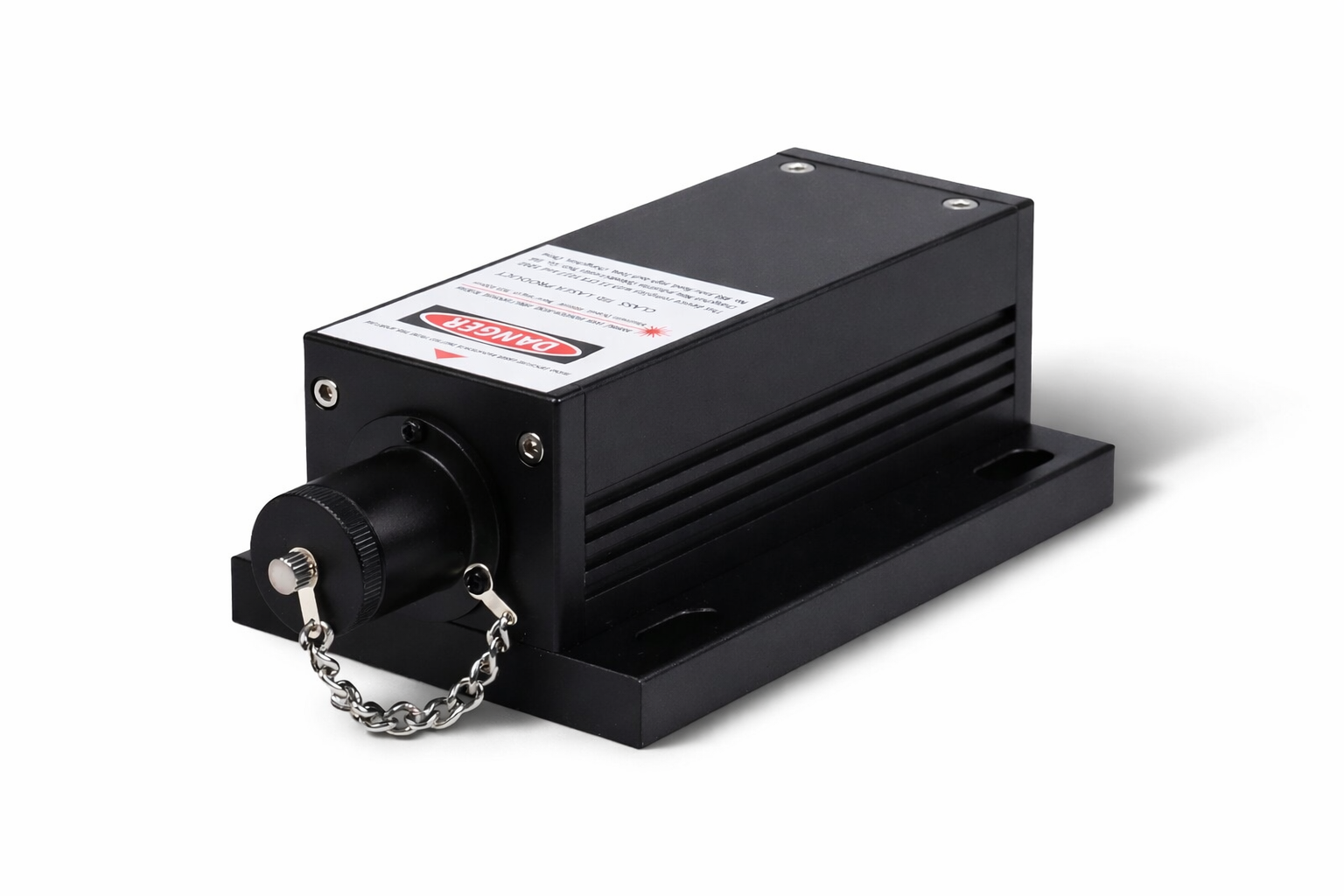

Part NumberDMCE-445
Beam ModeMultimode
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 2.5 × 5.2 mm at aperture (1/e²)
Dimensions (mm)143.5 × 73 × 46.2 mm
Selected Power100 mW
Typical Applications
Scientific ResearchLaser PointingShow & RGB Mixed Laser Systems
Common Specifications
| Laser Type: | Diode Laser | Modulation: | DC – 30 kHz, TTL/Analog | |
| Polarisation: | > 100:1 linear | Interface: | RS-232 | |
| Beam Diameter: | < 2.5 × 5.2 mm at aperture (1/e²) | Dimensions (mm): | 143.5 × 73 × 46.2 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features
- High-power blue diode with active power stabilisation for consistent long-term output
- Multimode output up to 500 mW for high-brightness illumination and RGB laser systems
- DC – 30 kHz TTL/Analog modulation for time-resolved applications
- Compact form factor — fits standard OEM laser mounts
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
