Configure your order
1Select variant
2Select output power
3Your configuration

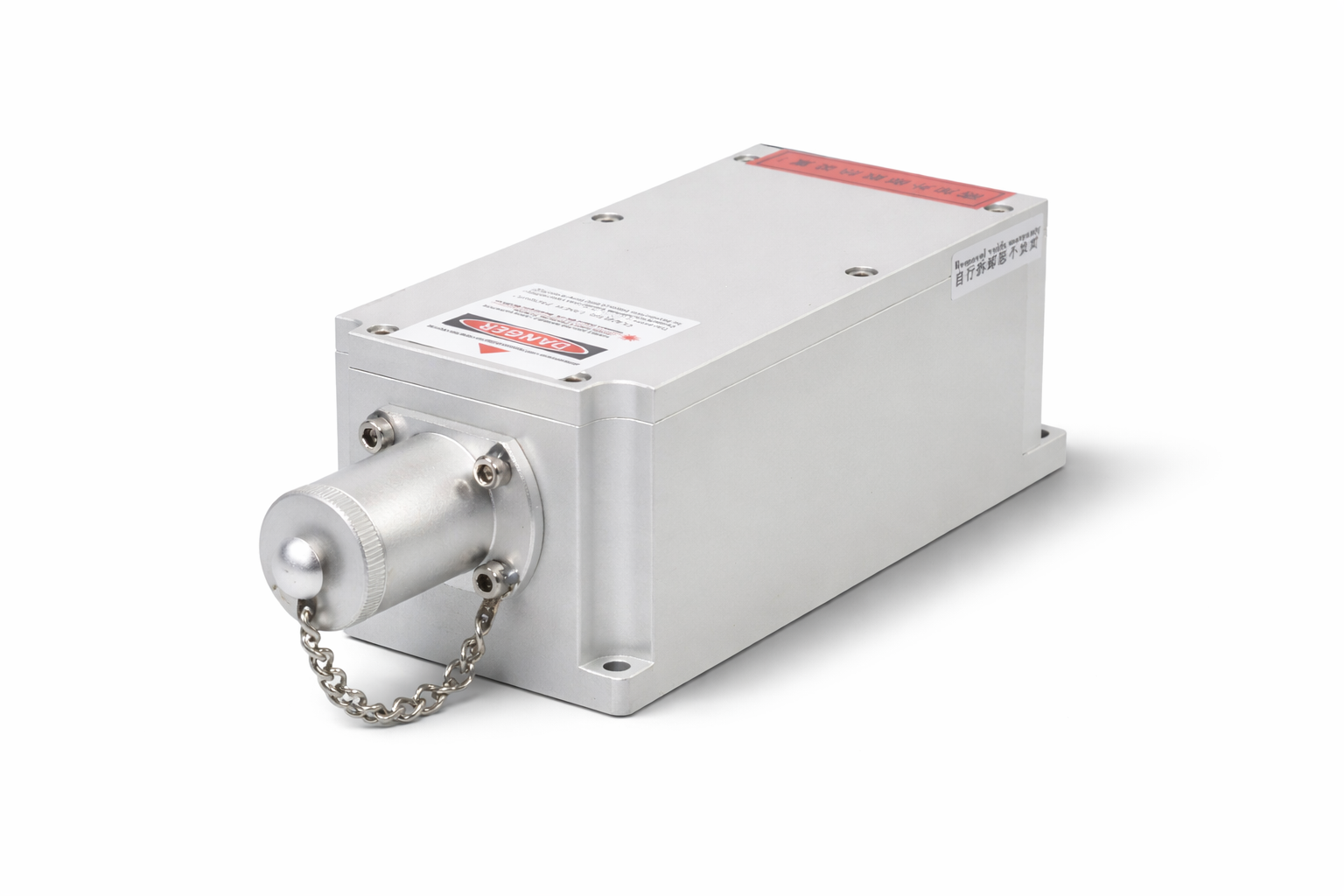

Part NumberSLCE-1064
Beam ModeTEM₀₀
PerformanceStandard
Power Stability< 1% RMS
Beam QualityM² < 1.5
Beam Diameter~ 1 mm at aperture (1/e²)
Dimensions (mm)160 × 60 × 50 mm
Selected Power1000 mW
Typical Applications
Scientific ExperimentsOptical InstrumentationOptical SensingMeasurementTelecommunicationSpectroscopy
Common Specifications
| Laser Type: | DPSS Laser | Modulation: | DC – 30 kHz, TTL/Analog | |
| Polarisation: | > 100:1 | Interface: | RS-232 | |
| Beam Diameter: | ~ 1 mm at aperture (1/e²) | Dimensions (mm): | 160 × 60 × 50 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features
- Industry-standard 1064 nm DPSS — TEM₀₀ beam with M² < 1.5 across all variants
- Narrow linewidth enables SHG (→532 nm) and THG (→355 nm) frequency conversion
- Three power tiers: standard (3–4 W), low noise (1.5–3 W), and pro (700 mW–1 W)
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
