Configure your order
1Select variant
2Select output power
3Your configuration

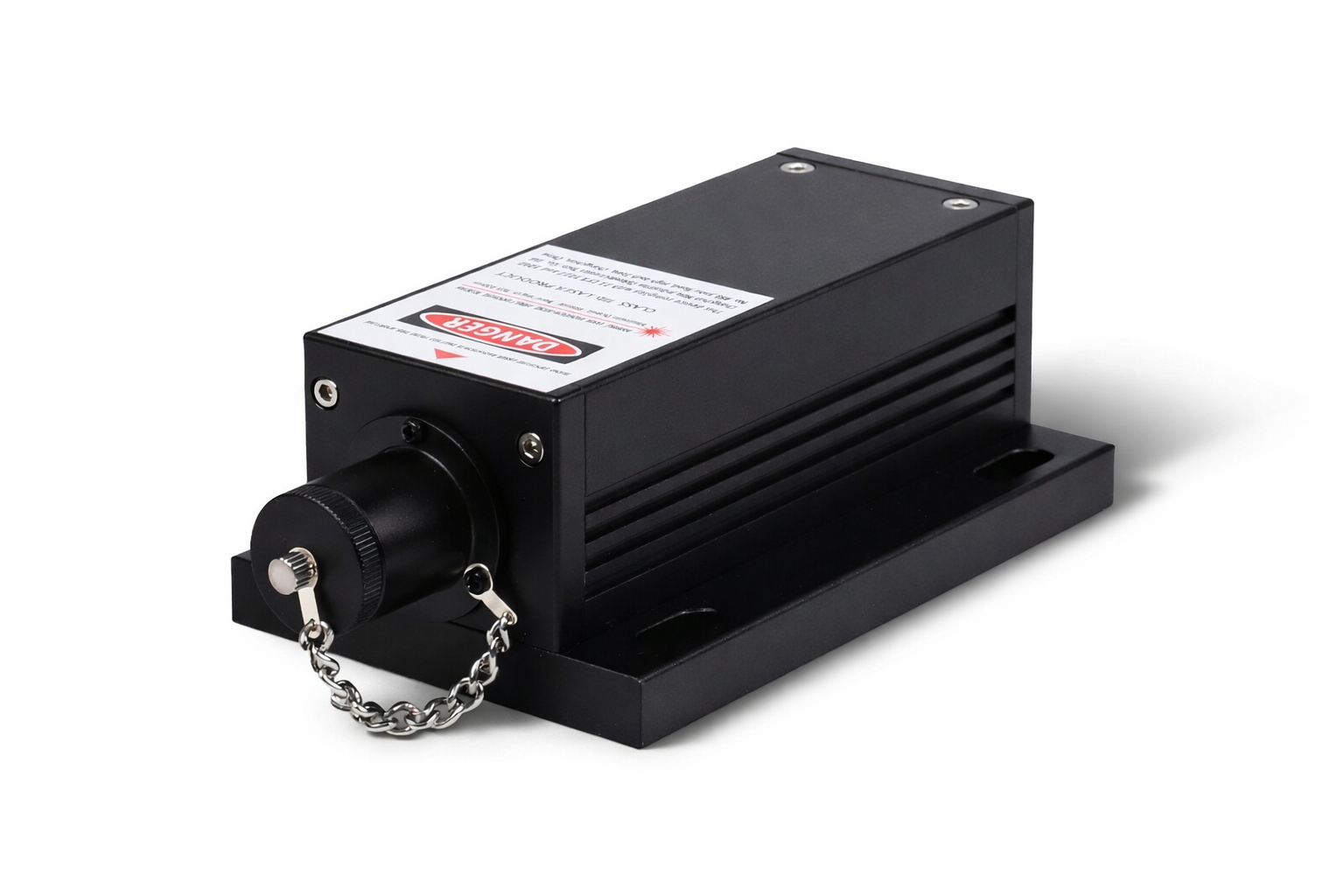

Part NumberDMCE-488
Beam ModeMultimode
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 3 × 3 mm at aperture (1/e²)
Dimensions (mm)143.5 × 73 × 46.2 mm
Selected Power100 mW
Typical Applications
Medical ImagingFlow CytometryDNA SequencingFluorescence Microscopy
Common Specifications
| Laser Type: | Diode Laser | Modulation: | DC – 30 kHz, TTL/Analog | |
| Polarisation: | > 50:1 (100:1 optional) | Interface: | RS-232 | |
| Beam Diameter: | < 3 × 3 mm at aperture (1/e²) | Dimensions (mm): | 143.5 × 73 × 46.2 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features
- Industry-standard 488 nm — optimal excitation for FITC, GFP, and Alexa Fluor 488
- Three performance tiers: Standard, Low Noise, and Pro diode variants
- Active power stabilisation on all variants for consistent long-term output
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
