Configure your order
1Select variant
2Select output power
3Your configuration

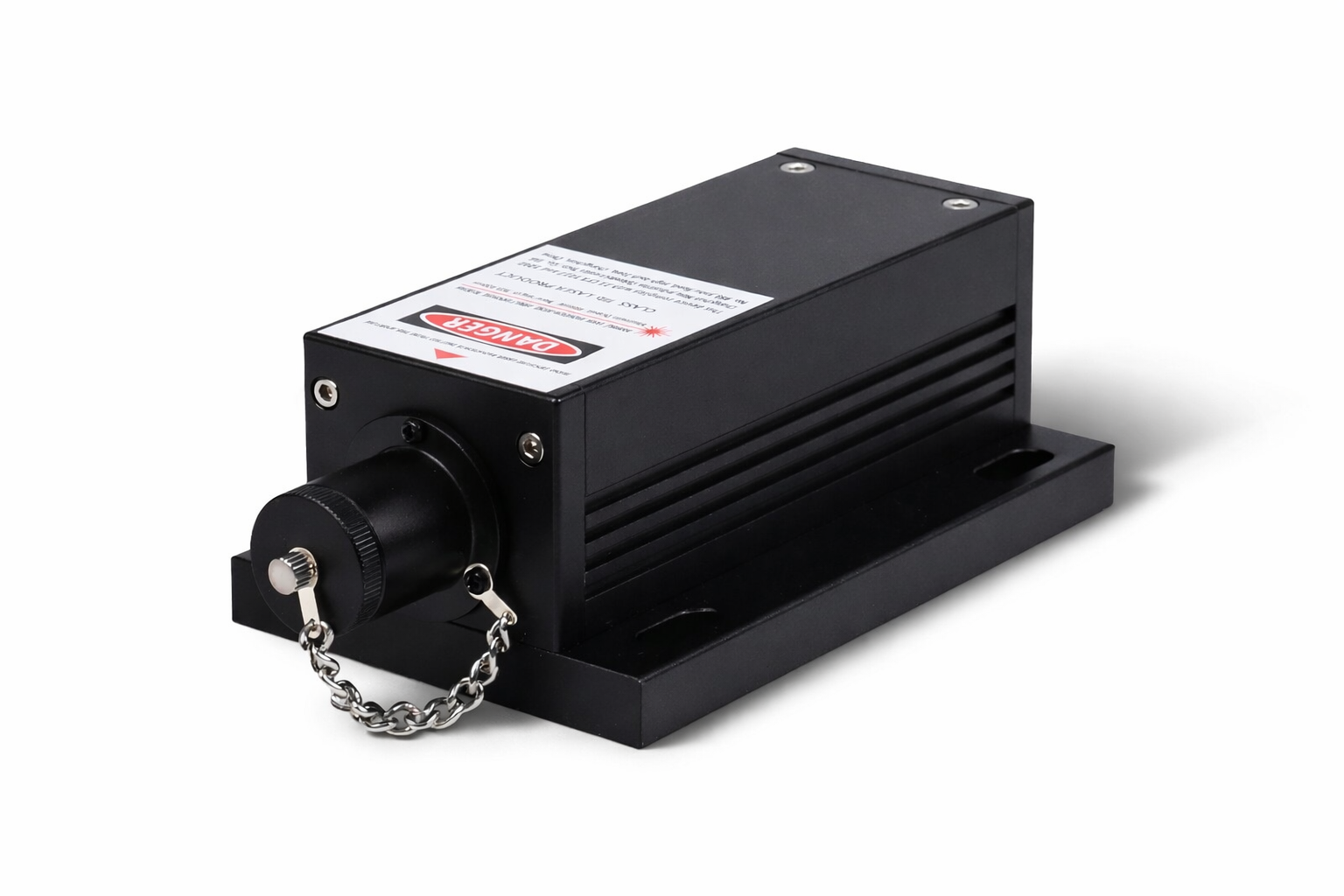

Part NumberDMCE-405
Beam ModeMultimode
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 3 mm at 1/e²
Dimensions (mm)143.5 × 73 × 46.2 mm
Selected Power100 mW
Typical Applications
Medical ImagingFlow CytometryDNA SequencingFluorescence MicroscopyAnalytical SensingSpectroscopyTelecommunicationAdvanced Research
Common Specifications
| Laser Type: | Diode Laser | Modulation: | DC – 10 kHz, TTL/Analog | |
| Polarisation: | > 50:1 (100:1 optional) | Interface: | RS-232 | |
| Beam Diameter: | < 3 mm at 1/e² | Dimensions (mm): | 143.5 × 73 × 46.2 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features
- Diode laser with active power stabilisation for consistent long-term output
- Standard and low-noise variants offer multimode high-power output up to 1000 mW
- Pro variant delivers TEM₀₀ beam with M² < 1.1 for precision applications
- Suitable for BV421 and Pacific Blue fluorophore panels in flow cytometry
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
