Configure your order
1Select variant
2Select output power
3Your configuration
Part NumberDMCE-375
Beam ModeMultimode
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 1.5 × 3.5 mm at 1/e²
Dimensions (mm)143.5 × 73 × 46.2 mm
Selected Power50 mW
Typical Applications
Flow CytometryFluorescence MicroscopyDNA SequencingMedical ImagingAdvanced Research
Common Specifications
| Laser Type: | Diode Laser | Modulation: | DC – 30 kHz, TTL/Analog | |
| Polarisation: | > 50:1 (100:1 optional) | Interface: | RS-232 | |
| Beam Diameter: | < 1.5 × 3.5 mm at 1/e² | Dimensions (mm): | 143.5 × 73 × 46.2 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features

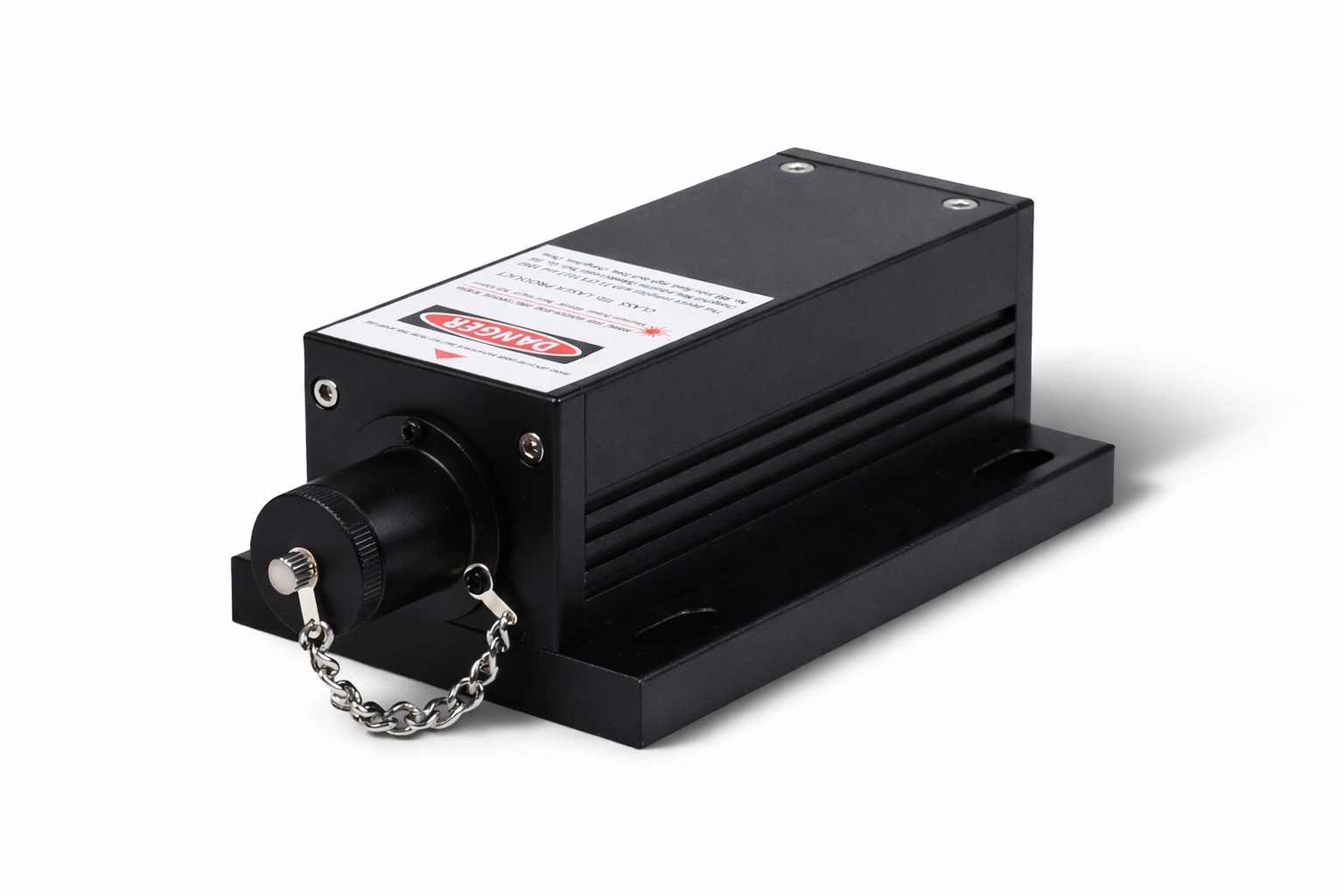

- Compact UV diode laser at 375 nm with active power stabilisation
- Multimode output up to 400 mW for flow cytometry and UV fluorescence excitation
- DC – 30 kHz TTL/Analog modulation for time-resolved and pulsed applications
- Compact form factor — fits standard OEM laser mounts
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
