Part NumberSMCE-320
Beam ModeNear TEM₀₀
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 3 mm at aperture (1/e²)
Dimensions (mm)
Selected Power500 mW
Typical Applications
Flow CytometryFluorescence MicroscopyCell SortingAdvanced ResearchOEM InstrumentSemiconductor InspectionSpectroscopy
Common Specifications
| Laser Type: | DPSS Laser | Operating Temp.: | 10 – 35 °C | |
| Polarisation: | > 100:1 | Interface: | RS-232 | |
| Beam Diameter: | < 3 mm at aperture (1/e²) | Weight: | 20.0 kg | |
| Start-Up Time: | < 10 min | Power Supply: | 100–240 VAC, 50/60 Hz |
Key Features

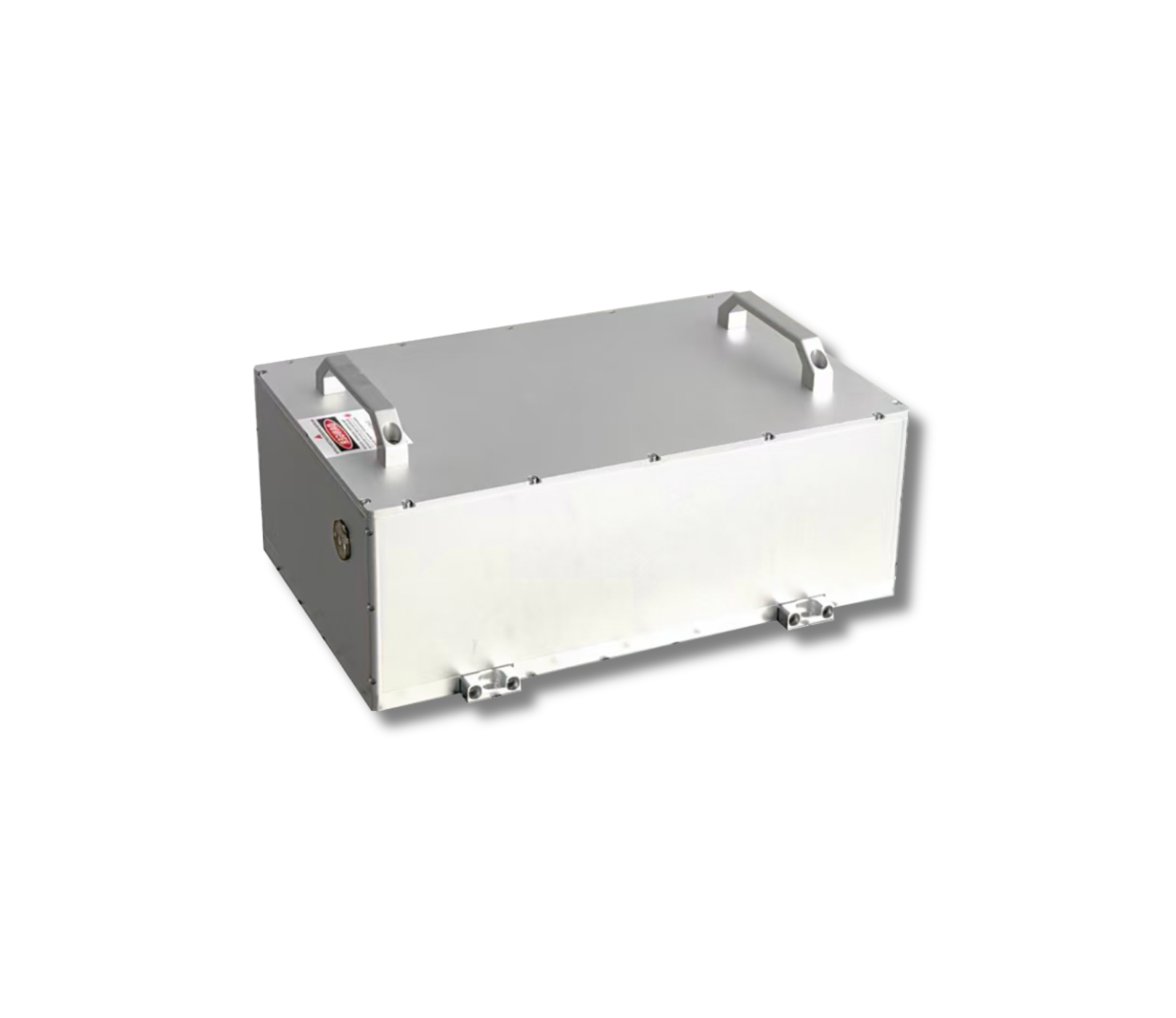

- High-power UV DPSS laser at 320 nm — stable CW output up to 4000 mW
- TEM₀₀ beam for UV fluorescence excitation and semiconductor inspection
- Standard, low-noise, and pro variants for research, OEM, and precision applications
- All-solid-state design — no consumables, no periodic realignment required
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
