Configure your order
1Select variant
2Select output power
3Your configuration
Part NumberSMCE-266
Beam ModeNear TEM₀₀
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter< 3 mm at aperture (1/e²)
Dimensions (mm)500 × 101 × 137 mm
Selected Power100 mW
Typical Applications
Flow CytometryFluorescence MicroscopyCell SortingSemiconductor InspectionOEM InstrumentAdvanced ResearchSpectroscopy
Common Specifications
| Laser Type: | DPSS Laser | Modulation: | DC – 10 kHz, TTL/Analog | |
| Polarisation: | > 100:1 | Interface: | RS-232 | |
| Beam Diameter: | < 3 mm at aperture (1/e²) | Dimensions (mm): | 500 × 101 × 137 mm | |
| Start-Up Time: | < 10 min | Weight: | 35.0 kg | |
| Operating Temp.: | 10 – 35 °C | Power Supply: | 100–240 VAC, 50/60 Hz |
Key Features

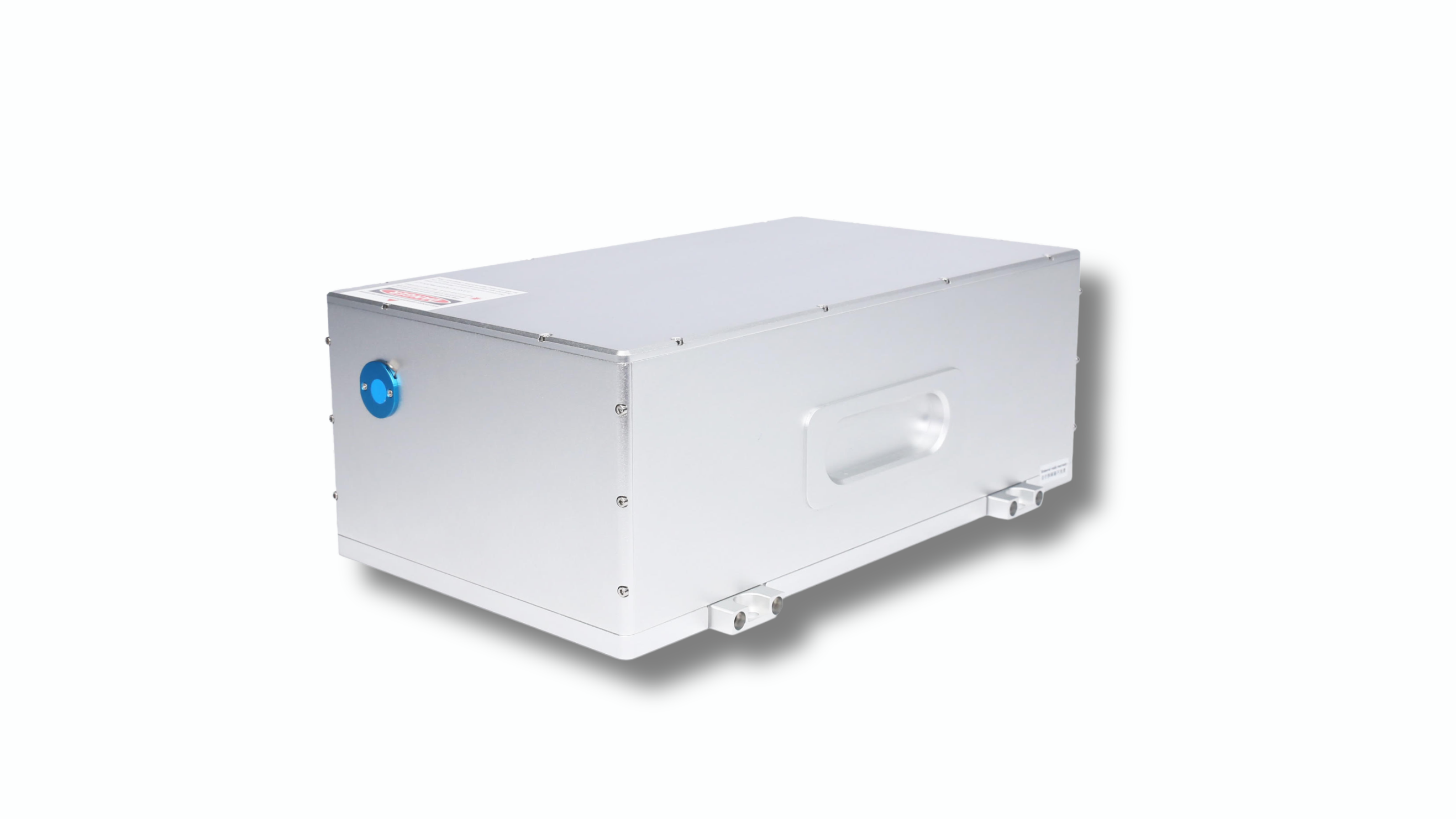

- Compact deep UV DPSS laser at 266 nm — highly stable continuous wave output
- Near-TEM₀₀ beam for UV fluorescence excitation and material inspection
- Up to 500 mW output power for demanding deep UV applications
- All-solid-state design — no consumables, no periodic realignment required
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
