Configure your order
1Select variant
2Select output power
3Your configuration

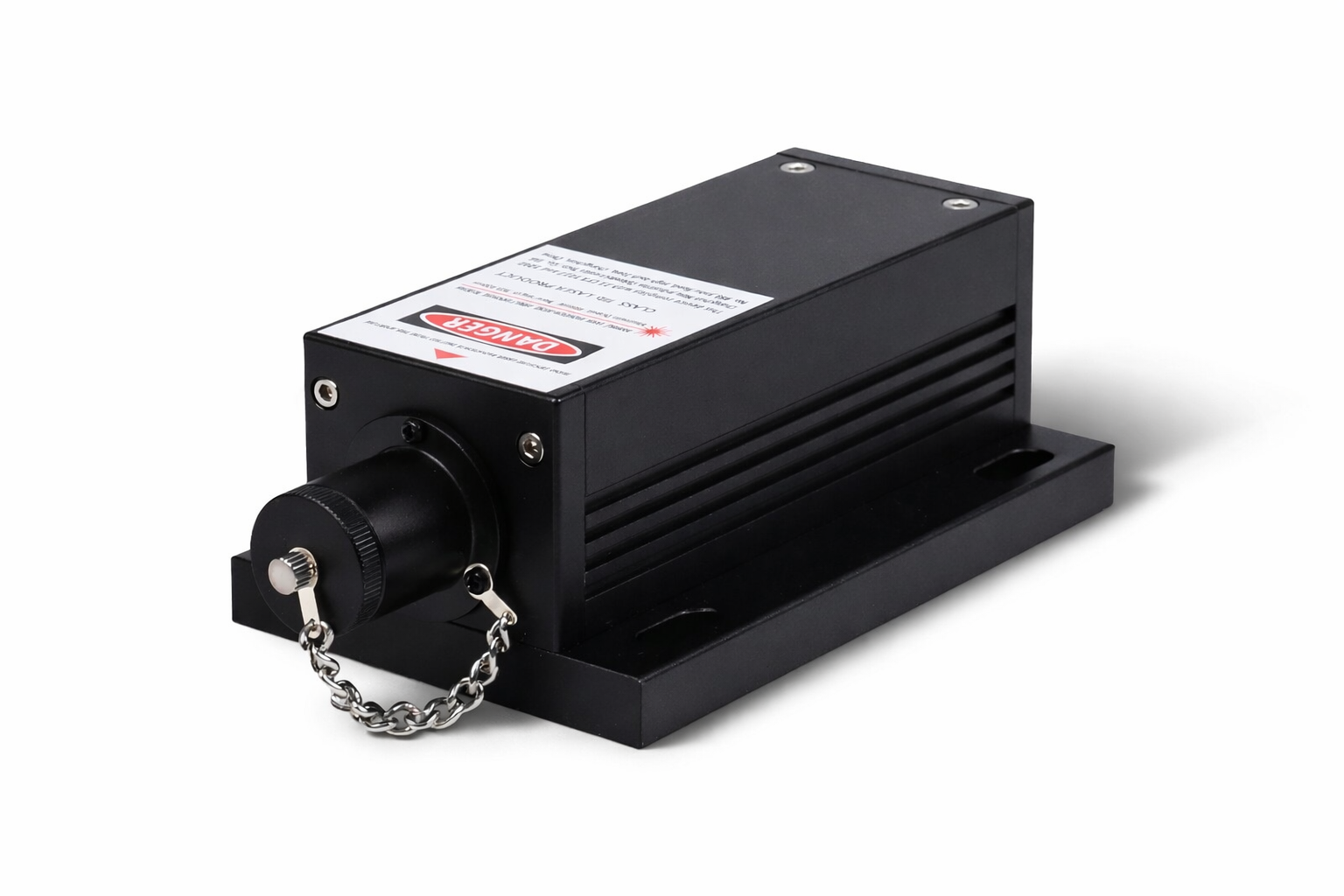

Part NumberDMCE-1550
Beam ModeMultimode
PerformanceStandard
Power Stability< 1% RMS
Beam Diameter~ 5 × 8 mm at aperture (1/e²)
Dimensions (mm)146 × 73 × 46.2 mm
Selected Power100 mW
Typical Applications
Flow CytometryFluorescence MicroscopyDNA SequencingMedical ImagingAdvanced Research
Common Specifications
| Laser Type: | Diode Laser | Modulation: | DC – 30 kHz, TTL/Analog | |
| Polarisation: | > 100:1 | Interface: | RS-232 | |
| Beam Diameter: | ~ 5 × 8 mm at aperture (1/e²) | Dimensions (mm): | 146 × 73 × 46.2 mm | |
| Start-Up Time: | < 5 min | Power Supply: | 100–240 VAC, 50/60 Hz | |
| Operating Temp.: | 10 – 35 °C |
Key Features
- Telecom C-band wavelength for fibre optic communications and medical imaging
- Standard and low-noise variants offer multimode output up to 600 mW
- DC – 30 kHz TTL/Analog modulation for high-speed pulsed applications
- Low-noise variant offers reduced amplitude noise for sensitive detection
Need a custom configuration?
OEM integration, custom power levels, and fibre-coupled variants available on request.
